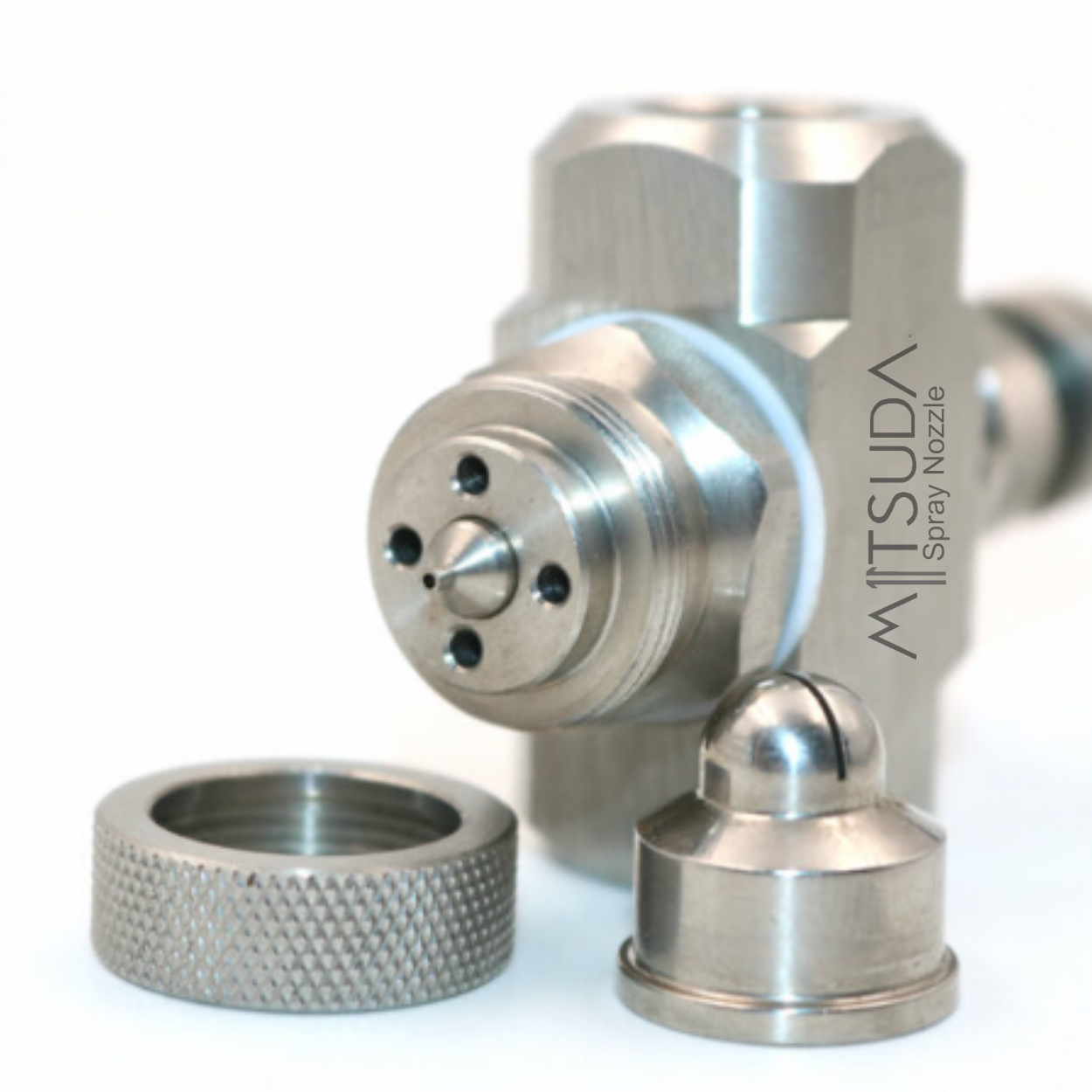

What is a Atomizing Nozzle?

An atomizing nozzle is a device used to break up a liquid into small droplets or a fine mist, typically for applications such as spraying, coating, humidification, or cooling. Atomizing nozzles are designed to produce a uniform spray pattern and particle size distribution for efficient and precise dispersion of liquids.

Here's how an atomizing nozzle typically works:

1. Fluid Inlet: The liquid to be atomized is supplied to the atomizing nozzle through a fluid inlet port.

2. Internal Design: Inside the nozzle, the liquid passes through a narrow orifice or passage. This constriction accelerates the fluid velocity, increasing its kinetic energy.

3. Shear Forces: As the high-velocity liquid exits the orifice, it encounters a surrounding gas (often air) or another fluid. The difference in velocity between the liquid and the surrounding medium creates shear forces that break the liquid into small droplets.

4. Spray Pattern: The atomized liquid forms a spray pattern, which can vary depending on factors such as nozzle design, fluid properties, and operating conditions.

Atomizing nozzles are available in various designs, including:

• Internal Mix Nozzles: In these nozzles, the liquid and the atomizing medium (e.g., air) are mixed internally before exiting the nozzle, resulting in finer atomization.
• External Mix Nozzles: The liquid and atomizing medium are mixed outside the nozzle before being expelled, offering more control over the spray pattern and droplet size.
• Pressure Atomizing Nozzles: These use high-pressure fluid to atomize the liquid, suitable for applications requiring a fine mist or precise control over droplet size.
• Ultrasonic Atomizing Nozzles: These use ultrasonic vibrations to break up the liquid into fine droplets, offering precise control and minimal clogging.

Atomizing nozzles find applications in various industries, including agriculture, automotive, pharmaceuticals, food processing, and environmental control. They are crucial for processes such as spraying pesticides, coating surfaces, humidifying air, cooling equipment, and applying coatings or finishes.

Overall, atomizing nozzles play a critical role in achieving efficient and uniform dispersion of liquids in a wide range of industrial and commercial applications.
